How to extract from the robot the data WAL can read — backups and logs, step by step on the pendant, by brand and generation.

Which brand is your robot?

S4Backup

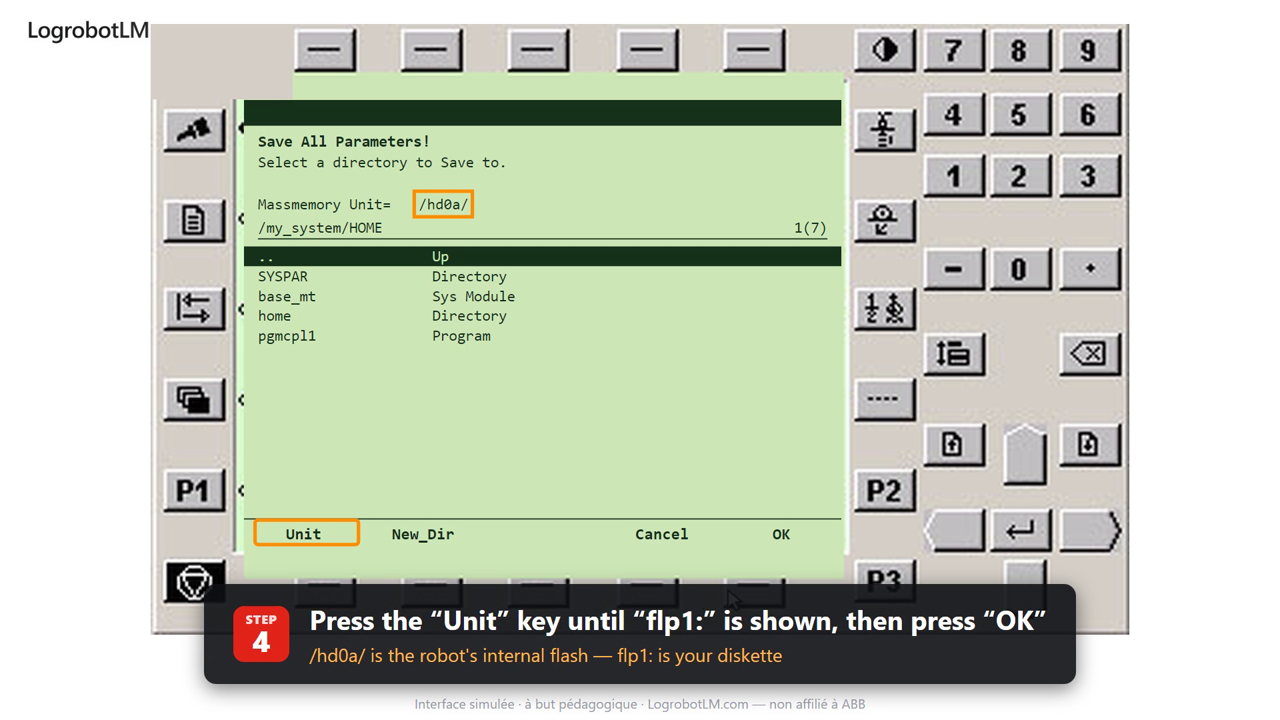

S4 / S4C — Parameters and modules to a disketteMiscellaneous → System Parameters → File: Save All As → flp1: · Program → File: Save Module As

MOC.cfg · EIO.cfg · SYS.cfg.mod · .prg · .sys

S4C+Backup

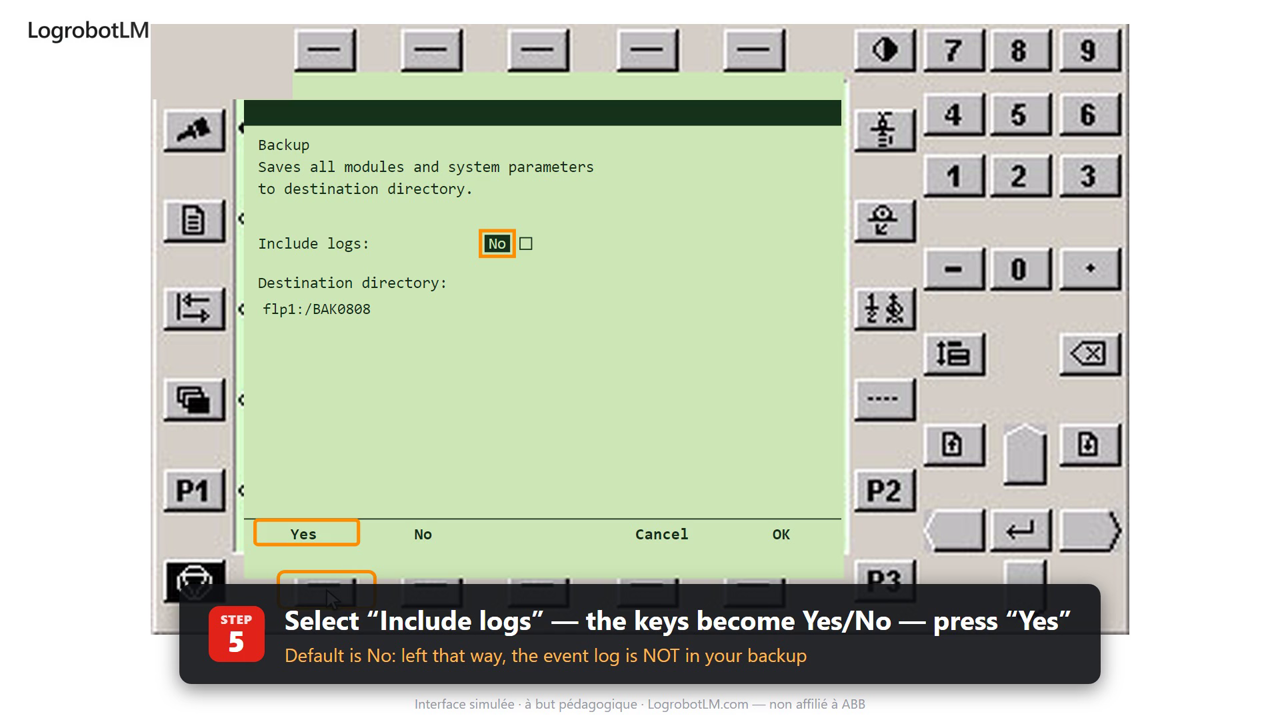

S4C(+) — Backup including the event logMiscellaneous → Service → File: 3 Backup → Include logs: Yes → flp1:

MOC.cfg · EIO.cfg · SYS.cfgElog .txt · .log.mod · .prg · .sys

IRC5Backup

IRC5 — System backup to USBABB menu → Backup and Restore → Backup Current System → USB

backinfo.txtMOC.cfg · EIO.cfg · SYS.cfgElog .txt · .log.mod · .prg · .sys

IRC5Log / diagnostic

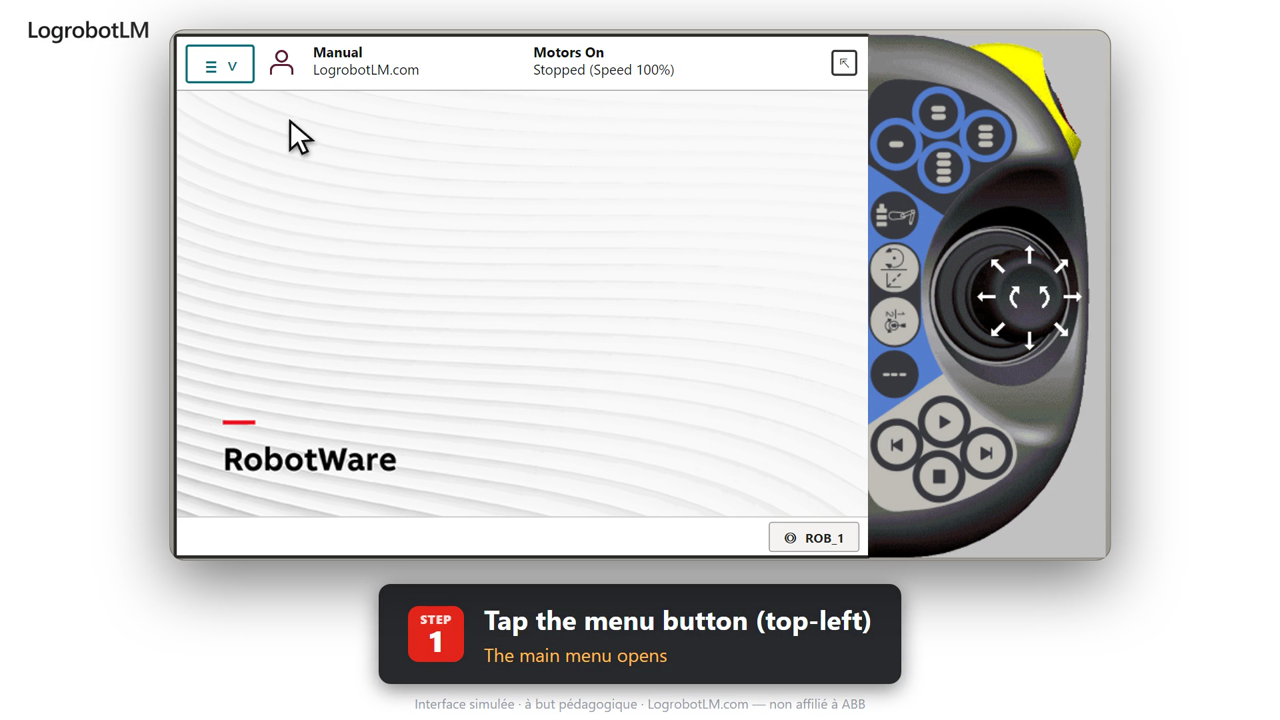

IRC5 — Event log to USBABB menu → Event Log → Save All Logs As → USB

Elog .txt · .log

OmniCoreBackup

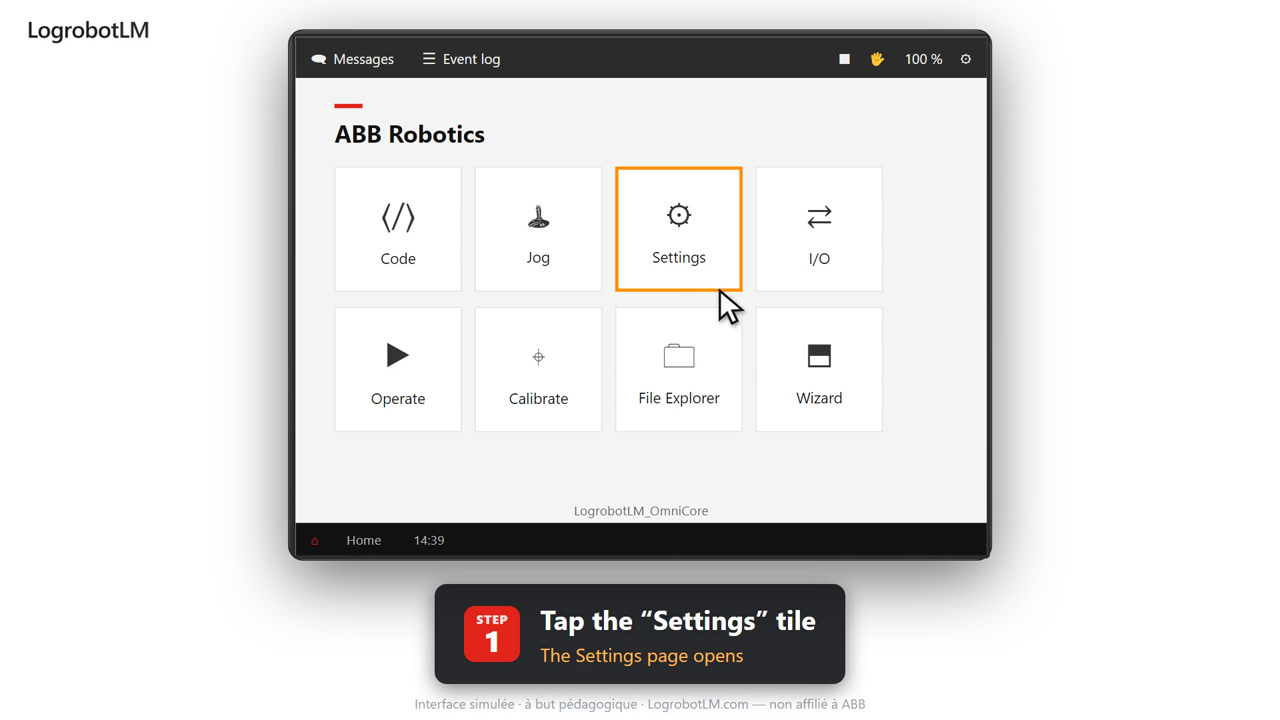

OmniCore — System backup to USBSettings → Backup & Recovery → Backup → USB Drive (D:)

backinfo.txtMOC.cfg · EIO.cfg · SYS.cfg.mod · .prg · .sys

OmniCoreLog / diagnostic

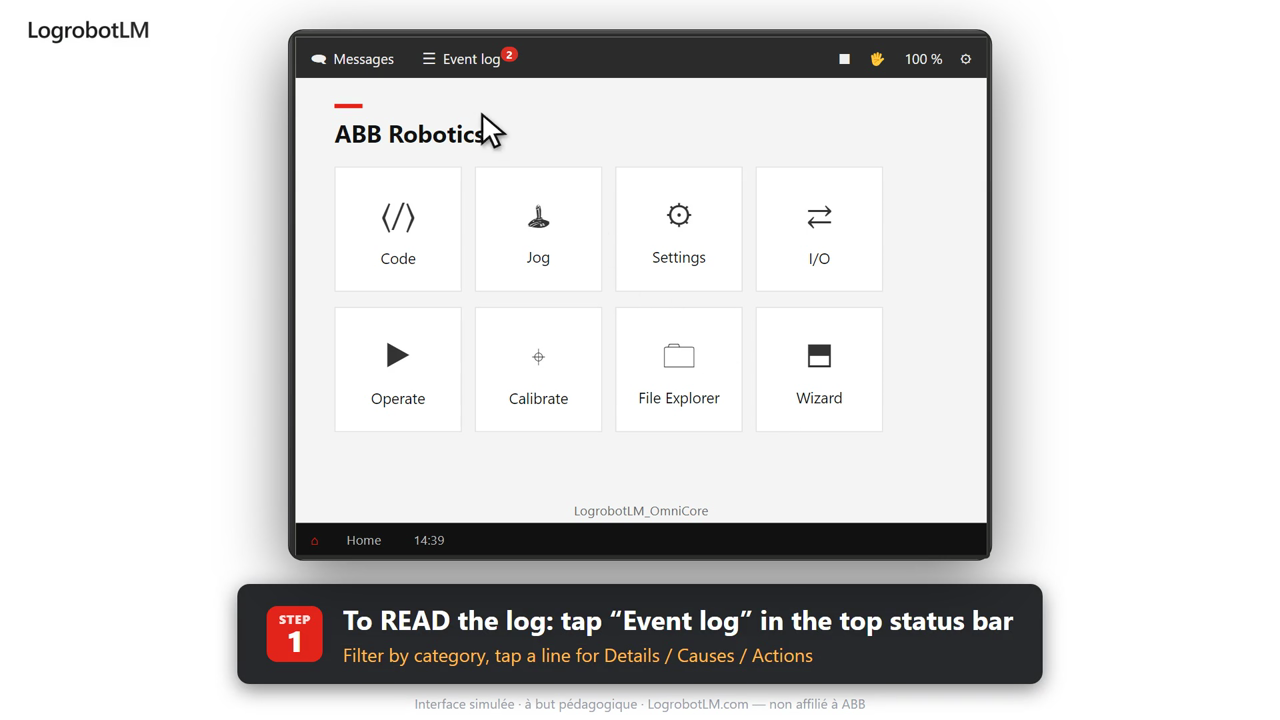

OmniCore — System diagnostics to USBSettings → Backup & Recovery → System diagnostics → USB Drive (D:)

System Diagnostics .tar
